Stainless steel precision tubes 1.6 mm x 0.19 mm Type AISI 304 Hard

1.6 mm x 0.19 mm Type AISI 304 Hard

Stainless steel precision tubes 1.6 mm x 0.19 mm Type AISI 304 Hard
Steel precision tubes in bar
0.4 mm x 0.12 mm Type AISI 304 Hard
0.5 mm x 0.12 mm Type AISI 304 Hard
0.6mm x 0.15mm Type AISI 304 Hard
0.7mm x 0.15mm Type AISI 304 Hard
0.8mm x 0.15mm Type AISI 304 Hard
0.9mm x 0.15mm Type AISI 304 Hard
1.0 mm x 0.15 mm Type AISI 304 Hard
1.1mm x 0.15mm Type AISI 304 Hard
1.2mm x 0.20mm Type AISI 304 Hard
1.3 mm x 0.15 mm Type AISI 304 Hard
1.4 mm x 0.15 mm Type AISI 304 Hard
1.5 mm x 0.15 mm Type AISI 304 Hard
1.6 mm x 0.19 mm Type AISI 304 Hard
1.65mm x 0.25mm Type AISI 304 Hard
1.7mm x 0.15mm Type AISI 304 Hard
1.8mm x 0.20mm Type AISI 304 Hard
2.0mm x 0.20mm Type AISI 304 Hard
2.0mm x 0.25mm Type AISI 316 Hard
2.0mm x 0.50mm Type AISI 304 Hard
2.2mm x 0.25mm Type AISI 304 Hard
2.5mm x 0.25mm Type AISI 304 Hard
2.5mm x 0.25mm Type AISI 316 Hard
2.5mm x 0.50mm Type AISI 304 Hard
2.6mm x 0.20mm Type AISI 304 Hard
3.0mm x 0.25mm Type AISI 304 Hard
3.0mm x 0.25mm Type AISI 316L Hard
3.0mm x 0.50mm Type AISI 304 Hard
3.0mm x 0.50mm Type AISI 316 Hard
3.5mm x 0.25mm Type AISI 304 Hard
3.5mm x 0.50mm Type AISI 316 Hard
4.0mm x 0.25mm Type AISI 304 Hard
4.0mm x 0.30mm Type AISI 304 Annealed
4.0mm x 0.30mm Type AISI 316 Annealed
4.0 mm x 0.50 mm Type AISI 304 Hard
4.0mm x 0.50mm Type AISI 316 Hard
4.0 mm x 1.00 mm Type AISI 316 Hard
4.25mm x 0.25mm Type AISI 304 Hard
4.5mm x 0.25mm Type AISI 304 Hard
4.7 mm x 0.25 mm Type AISI 304 Hard
5.0mm x 0.25mm Type AISI 304 Hard
5.0mm x 0.30mm Type AISI 304 Hard
5.0mm x 0.50mm Type AISI 316 Hard
5.0mm X 1.00 mm quality 316
6.0mm x 0.25mm Type AISI 304 Hard
6.0mm x 0.50mm Type AISI 316 Hard
7.0mm x 0.25mm Type AISI 304 Hard
7.0mm x 0.50mm Type AISI 316 Hard
8.0mm x 0.25mm Type AISI 304 Hard
8.0mm x 0.50mm Type AISI 304 Hard
9.0mm x 0.30mm Type AISI 304 Hard
9.0mm x 0.50mm Type AISI 304 Hard
10.0mm x 0.50mm Type AISI 304 Hard
10.0mm x 0.50mm Type AISI 316 Hard
Steel precision tubes in coil
3.17mm x 0.50mm Type AISI 316 Annealed
4.0mm x 0.50mm Type AISI 304 Annealed
4.0mm x 0.50mm Type AISI 316 Annealed

Welded and redrawn tube in stainless steel. External and internal calibrations. Type AISI 304, hard treatment, manufacturing tolerances: +/- 0.02.

This tube reference is ideal for a wide range of applications such as: equipments of aeronautics, rail, petrochemical, paper-maker, textile, refrigerating, medical, dairy, pharmaceutical, cosmetic, tubing, tanker, household goods industries. There are also used in the chemical, pyrometry, electronics, automotive, food, gas chromatography, fishing, slot and modeling industries.

Among the different applications that use this tube, the most important are air and water pumps, toys, fishing and the automotive industry.

Working pressure: 178 kg cm2.

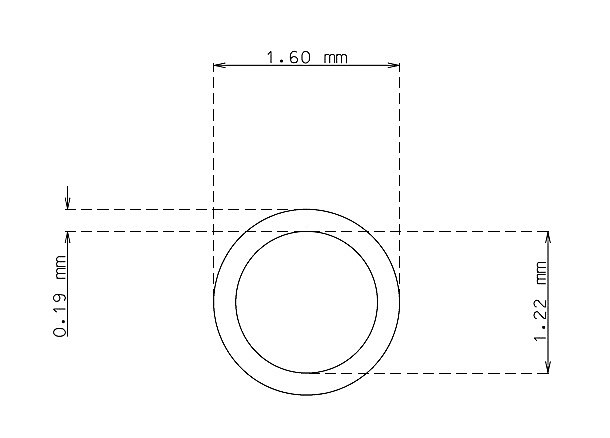

O.D. Outside Diameter1.6
WT Wall Thickness0.19
I.D. Internal Diameter1.22
Quality304
TreatmentHARD
Work pressure178 kg/cm2
Tube lenght 2.00 m
Calibration Ø Int- Ext0.02
Wheight0.0067 kg/m
Stainless steel precision tubes 1.6 mm x 0.19 mm Type AISI 304 Hard
